Product overview
Solid handwheel
It is distinguished by an exceptionally stable design, resistant to heavy loads.

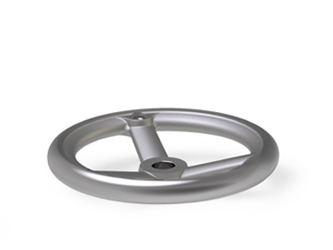

Two-spoke handwheel
A universal model for use with or without a revolving handle. Openings in the design allow operation similar to a steering wheel. It is an ideal solution for places with limited space where mounting a handle is not possible. The design is lighter than that of solid handwheels.
Three-arm knob
Due to the lack of a rim, its form resembles a clamping knob more than a wheel, but thanks to its relatively large size, it can also serve as a handwheel. Operation takes place without the use of a handle, which makes this model ideal for narrow passageways.
Crank handle
The advantage of this operating element is its smaller size and more compact form. The built-in handle enables easy operation. Crank handles are recommended for applications with large adjustment ranges.
Adjustable crank handle
It combines the functions of a crank handle and an adjustable lever thanks to the built-in toothed mechanism above the main hub.
Types of handles in handwheels and crank handle
> Fixed revolving handle – provides the greatest stability and will not fold during operation, but it takes up quite a lot of space.
> Folding revolving handle – allows the handle position to be changed when the machine is not in use. It reduces the risk of injury and saves space.
> Safety revolving handle – folds completely into the structure of the wheel, guaranteeing maximum user protection.
