Quarter-turn shaped lock, compact, black, groove, 9/34.
Quarter-turn shaped lock, compact, black, groove, 9/34.
Quarter-turn shaped lock, compact, black, groove, 9/34.
Quarter-turn shaped lock, compact, black, groove, 9/34.
Quarter-turn shaped lock, compact, black, groove, 9/34.
Quarter-turn shaped lock, compact, black, groove, 9/34.

Quarter-turn shaped lock, compact, black, groove, 9/34.

+ Add to compare
  • Kliknij i zobacz ten produkt oraz inne rozmiary
Kod grupy towaru
Size
uniwersalny
Made to OrderMade to Order
/ pc
Najniższa cena w ciągu ostatnich 30 dni przed wprowadzeniem obniżki: / pc
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Download technical information Print this page
Brand
PlacoLock
Product code
15.2012.2456-026620-0934
Product code
15.2012.2456-026620-0934
Housing color
Czarna
Profiled insert
Rowek
Insert color
Czarna
H/L
9/34
Package condition
oryginalne

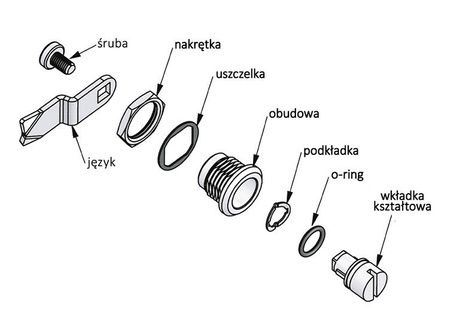

Standard material:

  • Cam and screw: galvanized steel
  • Lock insert: chrome-plated or black powder-coated zinc alloy
  • Nut: galvanized brass
  • Housing: chrome-plated or black powder-coated zinc alloy
  • Washer: stainless steel 304

Standard:

  • IP54
  • IP 65 - on special request
  • DIN EN 61373

*Simple language

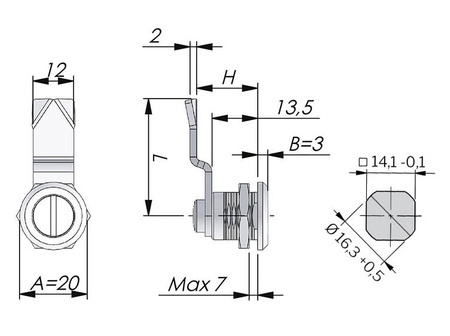

Quarter-turn lock with shaped insert, compact - Technical drawing
