T-handle cam lock, chrome-plated, 90° CW, adjustable three-point roller latch

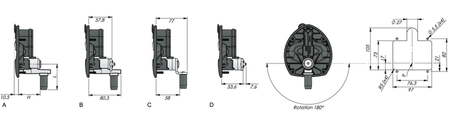

Cassette (container) lock with draw-in handle, for mounting from the inside of the enclosure using screws or nuts. Two independent locking systems: key insert and padlock eyelets. The insert is supplied with a dust cover and 2 keys. Right, left or bilateral opening. Five types of tongue to choose from. The possibility of mounting different or the same lock inserts.

Material:

• Body: glass fiber reinforced polyamide
• Handle: zinc alloy or stainless steel
• Shaft: galvanized or stainless steel
• Lock insert: zinc alloy
• Dust cover: stainless steel
• Padlock eyelets: stainless steel
• Fixed tongue: galvanized steel
• Adjustable tongue: zinc alloy
• Roller: glass fiber reinforced polyamide
• Screws: galvanized steel

Color:

• Body: black
• Handle: black, chrome or natural steel color

Standard

• IP65, DIN EN 61373

Additional Information

• Maximum tightening torque 2.2 Nm

Opening direction

• 90° CW - clockwise
• 90° CCW - counterclockwise
• 180° - 90° CW and 90° CCW
