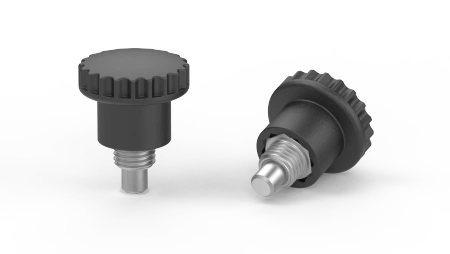

MINI positioning pin D-21mm d2-M8x0.75mm d1-4mm SW-10 with stainless steel pin with lock
MINI positioning pin D-21mm d2-M8x0.75mm d1-4mm SW-10 with stainless steel pin with lock
MINI positioning pin D-21mm d2-M8x0.75mm d1-4mm SW-10 with stainless steel pin with lock
MINI positioning pin D-21mm d2-M8x0.75mm d1-4mm SW-10 with stainless steel pin with lock

MINI positioning pin D-21mm d2-M8x0.75mm d1-4mm SW-10 with stainless steel pin with lock

+ Add to compare
  • Kliknij i zobacz ten produkt oraz inne rozmiary
Kod grupy towaru
29.002829.002829.002829.002829.002829.002829.002829.0028
Size
uniwersalny
6,27 €
incl. VAT / pc
/ pc
Najniższa cena w ciągu ostatnich 30 dni przed wprowadzeniem obniżki: / pc
You can also buy using:
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Download technical information Print this page
Brand
PlacoGrip
Product code
29.0028.02104
Producer code
2010000496572
Kod grupy towaru
29.0028
Product code
29.0028.02104
d1
4
d2
M8 x 0,75
l1
26,5
l2 min.
5
l3
5
l4 min.
3,5
SW
10
D
21
Package condition
oryginalne

Material:

  • Spindle: stainless steel
  • Body: galvanized steel
  • Knob: polyamide, non-removable

Spindle:

  • with lock

Standard color:

  • black

Custom order:

  • knob in other RAL or special colors

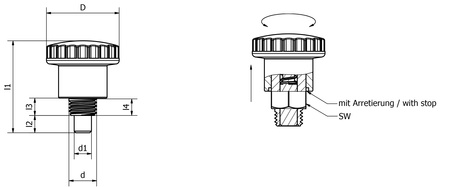

MINI setting spindle with stainless steel spindle with lock - Technical drawing
