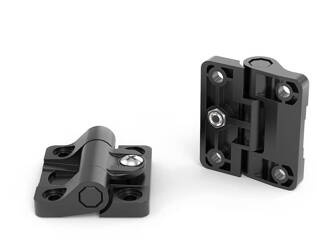

Hinge with opening force adjustment A-63.5mm B-58mm I-47.5mm C-38mm d1-6.5mm
Hinge with opening force adjustment A-63.5mm B-58mm I-47.5mm C-38mm d1-6.5mm
- Kliknij i zobacz ten produkt oraz inne rozmiary
Brand
Product code
6.0460.04706
Product code
6.0460.04706
A
63,5
B
58
l
47,5
C
38
H
20,5
h
8,5
h1
11,5
D
12,5
d1
6,5
F1 [N]
1500
F2 [N]
2250
Number of pieces
1
Package condition
oryginalne
Material:
- Hinge: glass fibre reinforced polyamide
- Pin: galvanized steel
- Adjustment screw: AISI 304 stainless steel
Holes:
- Through, for cylindrical head screws
Standard color:
- black
Maximum opening force:
- BK6.0460.03204: 0.8 Nm
- BK6.0460.047506: 4 Nm
