  • Kliknij i zobacz ten produkt oraz inne rozmiary

Kod grupy towaru
7,78 €
incl. VAT / pc
10,42 € / pc-25.34%
Najniższa cena w ciągu ostatnich 30 dni przed wprowadzeniem obniżki: / pc
You can also buy using:
14 days for easy returns
Find out in which store you can check the product and buy it right away
Adjustable foot with mounting holes D-80mm M10 x 100mm
Adjustable foot with mounting holes D-80mm M10 x 100mm
Kod grupy towaru:38.2201
Safe shopping

In a set

Swivel foot plate, D-60mm H-18mm 900kg
Swivel foot plate, D-60mm H-18mm 900kg (1 pc)
7,81 € / pc
Threaded stud for swivel foot, M16x80mm
Threaded stud for swivel foot, M16x80mm (1 pc)
2,61 € / pc
Download technical information Print this page
Product code
38.2201.10516080
Product code
38.2201.10516080
D
105
H
22
d2
9,5
l
74
d1
M16
S
80
SW
17
c
7,5
R
15
h1
28
Number of pieces
1
Package condition
oryginalne
Maximum width cm
10,5
Height cm
8
Dominant material
tworzywo sztuczne
Shape
okrągły
Model
M16x80 D105

Material:

  • Spindle: threaded, movable, made of galvanized steel
  • Plate: glass fiber reinforced polyamide

Mounting to the base:

  • the base of the foot has blind mounting holes, to attach the base to the substrate, the plastic membrane must be punched out (see: drawing).

Surface:

  • matte

Standard color:

  • black (RAL 9011)

Special orders:

  • different spindle length

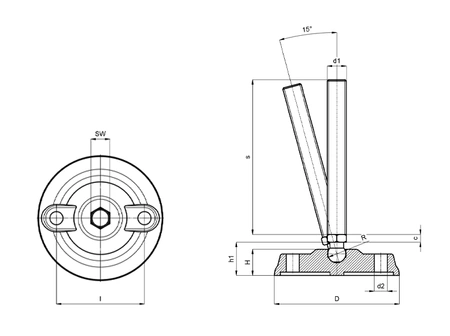

Movable foot with mounting holes - Technical drawing
