EPDM edge gasket, side seal, 2.0mm, 2x50m
EPDM edge gasket, side seal, 2.0mm, 2x50m
Brand
Product code
15.4022.427008
Product code
15.4022.427008
Core type
Zbrojenie druciane
Mounting range mm
2,0

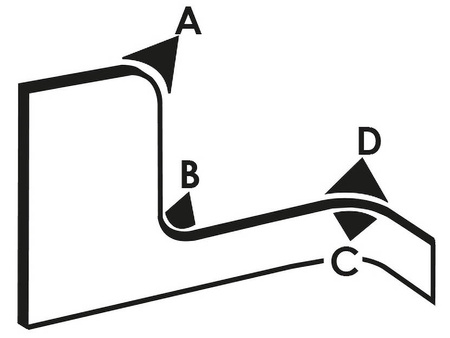

Bending radius [mm]
A=50, B=20, C=120, D=40
Standard
UL50, UL50 E, UL94 HB

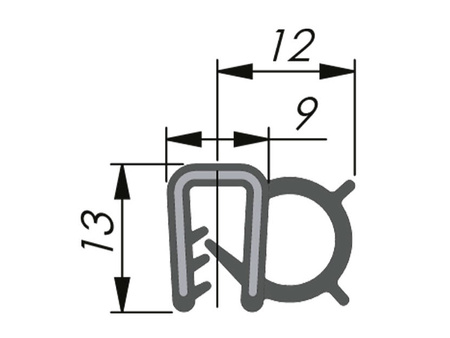

Drawing
1
Coil length [m]
2 x 50
CAD
/data/include/cms/CAD/BK15.4022/BK15.4022.427008.step
Description:

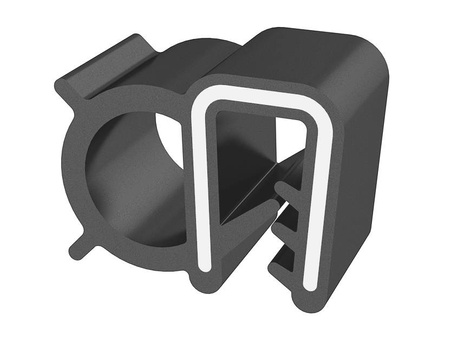

- Self-clamping protective and sealing profile with integrated steel core. Certified according to UL or DIN EN 45545-2 (not applicable for NBR profile).
Standard material:
- Clamping profile: EPDM
- Sealing profile: EPDM
- Core: steel
- ** 427008-NBR: NBR rubber
Standard color:
- Black
- Other colors available on request
Clamping range:
- Recommended panel thickness for the given profile
Additional information:
- * available only on special request
