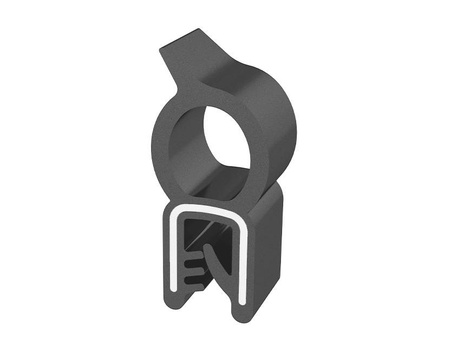

EPDM edge gasket, top seal, 1.0-2.5mm, 2x50m
EPDM edge gasket, top seal, 1.0-2.5mm, 2x50m
Brand
Product code
15.4021.427029-02
Product code
15.4021.427029-02
Core type
Zbrojenie druciane
Mounting range mm
1,0-2,5

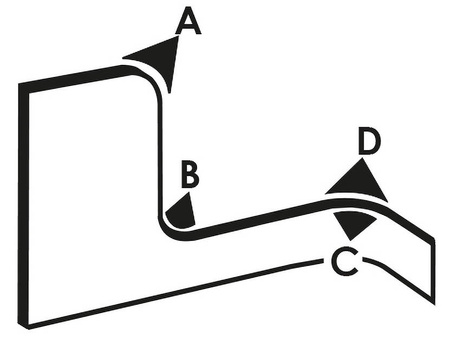

Bending radius [mm]
A=100, B=180, C=25, D=25
Standard
UL50, UL50 E, UL94 HB
Drawing
3
Coil length [m]
2 x 50
CAD
/data/include/cms/CAD/BK15.4021/BK15.4021.427029-02.step
Description:
- Self-clamping protective and sealing profile with integrated steel core. Certified according to UL or DIN EN 45545-2 (not applicable for NBR profile).
Standard material:
- Clamping profile: EPDM
- Sealing profile: EPDM
- Core: steel
- ** 427009-NBR: NBR rubber
Standard color:
- Black
- Other colors available on request
Clamping range:
- Recommended panel thickness for the given profile
Additional information:
- * available only on special request
