EPDM edge gasket, top seal, 1.0-3.0mm, 2x50m, DIN EN 45545-2
EPDM edge gasket, top seal, 1.0-3.0mm, 2x50m, DIN EN 45545-2
EPDM edge gasket, top seal, 1.0-3.0mm, 2x50m, DIN EN 45545-2
EPDM edge gasket, top seal, 1.0-3.0mm, 2x50m, DIN EN 45545-2
EPDM edge gasket, top seal, 1.0-3.0mm, 2x50m, DIN EN 45545-2
EPDM edge gasket, top seal, 1.0-3.0mm, 2x50m, DIN EN 45545-2

EPDM edge gasket, top seal, 1.0-3.0mm, 2x50m, DIN EN 45545-2

+ Add to compare
Kod grupy towaru
Size
uniwersalny
17,18 €
incl. VAT / metr
/ metr
Najniższa cena w ciągu ostatnich 30 dni przed wprowadzeniem obniżki: / metr
Sold by:100metr
You can also buy using:
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Download technical information Print this page Pobierz plik CAD
Brand
PlacoLock
Product code
15.4021.427009-45545
Product code
15.4021.427009-45545
Core type
Zbrojenie druciane
Mounting range mm
1,0-3,0

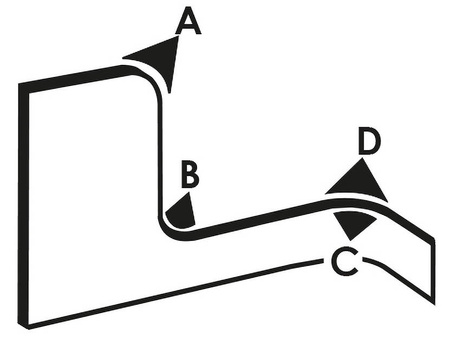

Bending radius [mm]
A=50, B=180, C=30, D=30
Standard
DIN EN 45545-2
Drawing
1
Coil length [m]
2 x 50
CAD
/data/include/cms/CAD/BK15.4021/BK15.4021.427009-45545.step

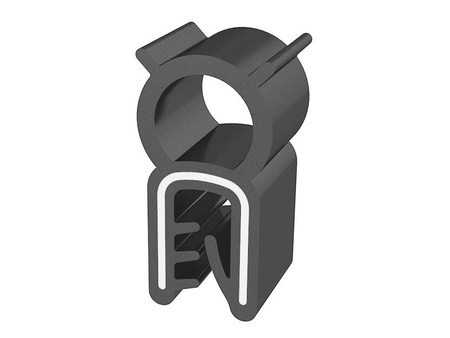

Description:

  • Self-clamping protective and sealing profile with integrated steel core. Certified according to UL or DIN EN 45545-2 (not applicable for NBR profile).

Standard material:

  • Clamping profile: EPDM
  • Sealing profile: EPDM
  • Core: steel
  • ** 427009-NBR: NBR rubber

Standard color:

  • Black
  • Other colors available on request

Clamping range:

  • Recommended panel thickness for the given profile

Additional information:

  • * available only on special request

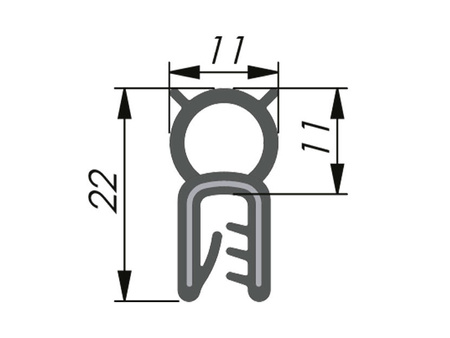

PVC edge protection – Technical drawing
