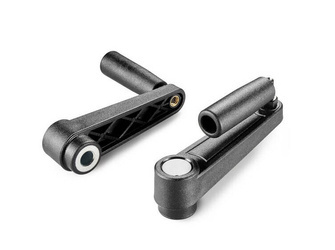

Folding handle crank with rotating handle and smooth bushing R-140mm D14
Folding handle crank with rotating handle and smooth bushing R-140mm D14
- Kliknij i zobacz ten produkt oraz inne rozmiary
Brand
Product code
6.0030.140D14
Producer code
2010000298343
Product code
6.0030.140D14
A
25,5
B
13,5
H
49
L
173
L1
89
R
140
c
16
d
35
d1
D14
d3
27
dl
26
dm
20
h
15
h3
3
Ht
82
m
34
Q1
22
D
43
Package condition
oryginalne
Material:
- Handle: glass fiber reinforced polyamide
Main embedded metal element:
- Sleeve made of galvanized steel, smooth, through-hole in H7 tolerance
Side embedded metal element:
- Brass sleeve, threaded, through-hole
Surface:
- Matte
Standard color:
- Handle: black RAL 9011
- Cap: gray RAL 7035
Custom order:
- Metal elements made of other materials
- Handle in other RAL colors or in special colors
- d1 hole according to the drawing
- Cap in a different color: black RAL 9011, orange RAL 2004, blue RAL 5015, yellow RAL 1021, red RAL 3000, green RAL 6024
dm - maximum diameter for independent drilling of the main sleeve
