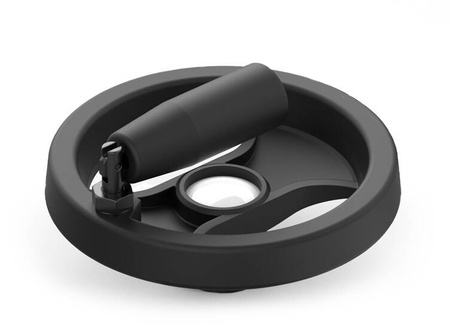

Handwheel with a foldable revolving handle D-252mm d1H7-20mm

Handwheel with a foldable revolving handle D-252mm d1H7-20mm

Handwheel with a foldable revolving handle D-252mm d1H7-20mm

+ Add to compare

Kliknij i zobacz ten produkt oraz inne rozmiary

Download technical information Print this page

Brand

Product code

6.0184.250D20

Producer code

2010000323021

Kod grupy towaru

6.0184

Product code

6.0184.250D20

H

70

L

97

c

46

d

55,5

d1

(*) 20

d3

24

dl

26

dm

28

h

47

h2

39

h3

11

m

24

Q

36

D

252

Package condition

oryginalne

Material:

Handle: glass fiber reinforced polyamide
Sleeve: galvanized steel, smooth, within H7 tolerance
(*) grooved hub

Surface:

matte

Standard color:

Handle: black
Cap: gray (RAL 7035)

Custom order:

d1 hole according to the drawing
sleeve made of different material
handle in other RAL colors or special colors
cap in other RAL colors or special colors

*dm – maximum diameter when drilling the main sleeve independently

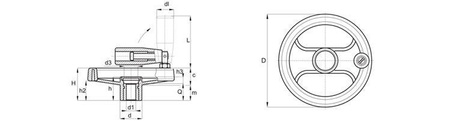

Hand wheel with folding rotary handle - Technical drawing
