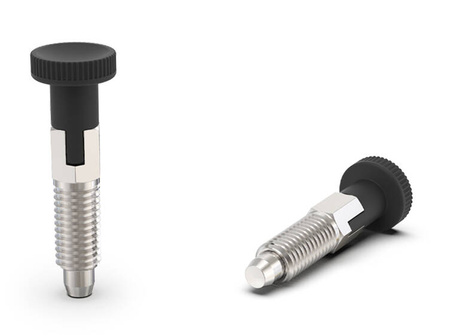

Locating pin D-21mm d2-M12 SW-12 d1-8mm with nickel-plated steel pin and lock
Locating pin D-21mm d2-M12 SW-12 d1-8mm with nickel-plated steel pin and lock
Locating pin D-21mm d2-M12 SW-12 d1-8mm with nickel-plated steel pin and lock
Locating pin D-21mm d2-M12 SW-12 d1-8mm with nickel-plated steel pin and lock

Locating pin D-21mm d2-M12 SW-12 d1-8mm with nickel-plated steel pin and lock

+ Add to compare
  • Kliknij i zobacz ten produkt oraz inne rozmiary
Kod grupy towaru
Size
uniwersalny
8,42 €
incl. VAT / pc
/ pc
Najniższa cena w ciągu ostatnich 30 dni przed wprowadzeniem obniżki: / pc
You can also buy using:
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Download technical information Print this page
Brand
PlacoGrip
Product code
29.0034.12000
Producer code
2010000090527
Kod grupy towaru
29.0034
Product code
29.0034.12000
d1
8
d2
M12
ca. l1
64
l2
8
l3
24
l4
13,5
SW
12
F1 [N]
6
F2 [N]
22
D
21
Package condition
oryginalne

Material:

  • Stem: stainless steel, nickel-plated
  • Body: galvanized steel, chrome-plated
  • Knob: polyamide, non-removable

Standard color:

  • black

Custom made:

  • spring with increased force,
  • knob in other RAL colors or special colors

Locknut to be ordered separately BK29.0021 and BK 29.0022.INOX

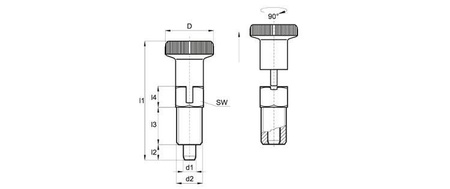

Adjusting pin with nickel-plated steel pin and lock - Technical drawing
