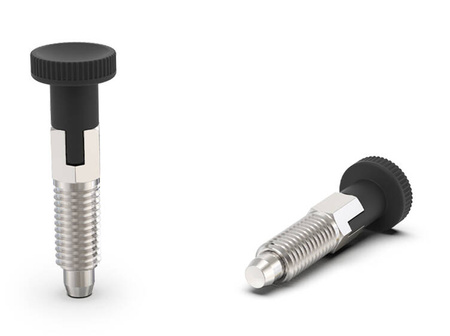

Locating pin D-21mm d2-M6x1.0mm SW-6 d1-4mm with a nickel-plated steel pin and lock
Locating pin D-21mm d2-M6x1.0mm SW-6 d1-4mm with a nickel-plated steel pin and lock
Locating pin D-21mm d2-M6x1.0mm SW-6 d1-4mm with a nickel-plated steel pin and lock
Locating pin D-21mm d2-M6x1.0mm SW-6 d1-4mm with a nickel-plated steel pin and lock

Locating pin D-21mm d2-M6x1.0mm SW-6 d1-4mm with a nickel-plated steel pin and lock

+ Add to compare
  • Kliknij i zobacz ten produkt oraz inne rozmiary
Kod grupy towaru
Size
uniwersalny
6,35 €
incl. VAT / pc
/ pc
Najniższa cena w ciągu ostatnich 30 dni przed wprowadzeniem obniżki: / pc
You can also buy using:
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Download technical information Print this page
Brand
PlacoGrip
Product code
29.0034.06000
Producer code
2010000090497
Kod grupy towaru
29.0034
Product code
29.0034.06000
d1
4
d2
M6
ca. l1
33
l2
4
l3
12
l4
7
SW
6
F1 [N]
3
F2 [N]
12
D
12
Package condition
oryginalne

Material:

  • Stem: stainless steel, nickel-plated
  • Body: galvanized steel, chrome-plated
  • Knob: polyamide, non-removable

Standard color:

  • black

Custom made:

  • spring with increased force,
  • knob in other RAL colors or special colors

Locknut to be ordered separately BK29.0021 and BK 29.0022.INOX

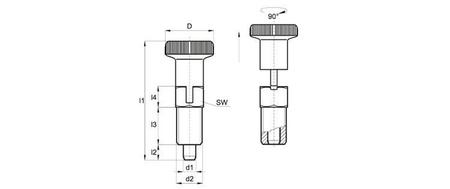

Adjusting pin with nickel-plated steel pin and lock - Technical drawing
