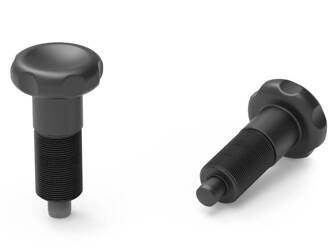

Locating pin D-22mm d2-M10x1.0mm d1-5mm
Locating pin D-22mm d2-M10x1.0mm d1-5mm
- Kliknij i zobacz ten produkt oraz inne rozmiary
Brand
Product code
6.0235.80405
Producer code
2010000327609
Kod grupy towaru
6.0235
Product code
6.0235.80405
H
45
d
12
d1
5
d2
M10 x 1
e2
17
h
22
Q
5
s2
6
D
22
Package condition
oryginalne
Material:
- (4) mushroom made of glass fiber reinforced polyamide
- (3) galvanized steel spring
- (2) steel body
- (1) hardened steel pin
Surface:
- (4) matte, black color (RAL 9011)
- (1, 2, 5) steel oxidized to black
Special order:
- mushroom in other RAL colors
Note:
- the insert hole for the pin should be made in H7 tolerance
The locating pin can be mounted manually.
