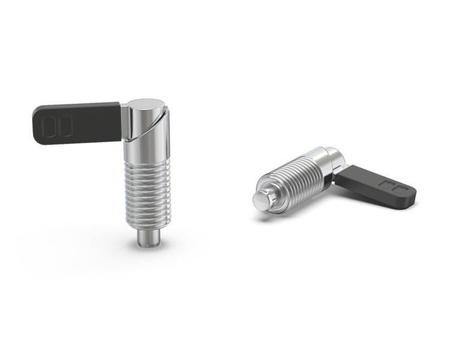

Locating pin D-42mm d2-M16x1.5mm d1-10mm with lever, INOX
Locating pin D-42mm d2-M16x1.5mm d1-10mm with lever, INOX
Locating pin D-42mm d2-M16x1.5mm d1-10mm with lever, INOX
Locating pin D-42mm d2-M16x1.5mm d1-10mm with lever, INOX

Locating pin D-42mm d2-M16x1.5mm d1-10mm with lever, INOX

+ Add to compare
  • Kliknij i zobacz ten produkt oraz inne rozmiary
Kod grupy towaru
Size
uniwersalny
31,54 €
incl. VAT / pc
/ pc
Najniższa cena w ciągu ostatnich 30 dni przed wprowadzeniem obniżki: / pc
You can also buy using:
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Download technical information Print this page
Brand
PlacoGrip
Product code
38.0028.1610.INOX
Kod grupy towaru
38.0028inox
Product code
38.0028.1610.INOX
l1
46
l2
10
l3
30
d1
10
d2
M16x1,5
D
42
Package condition
oryginalne
Kind
śruba
Standard
Inna norma
Kolor allegro
Inny kolor
Additional features
nierdzewne

Material:

  • Stem and body: stainless steel
  • Latch overlay: black plastic

Lock nut to be ordered separately BK29.0021 and BK 29.0022.INOX


To position the stem, the latch must be rotated 180°
Stem available with mounted plastic overlay

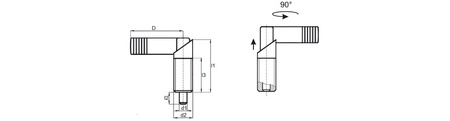

Adjusting stem with lever and lock nut, INOX - Technical drawing
